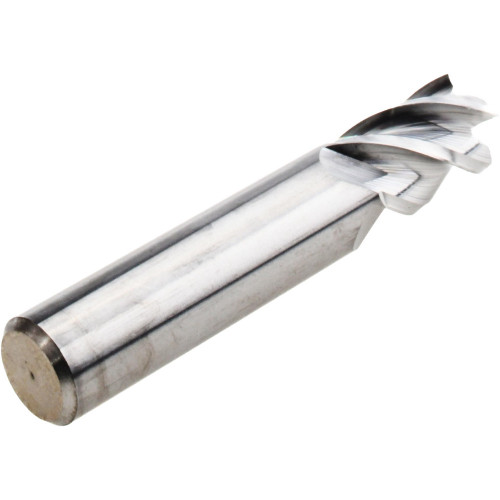

3/8" Square End Mill Carbide 4 Flute 30° Helix Stub Length Uncoated HTC
DIA=3/8" LOC=5/8" OAL=2" SHK=3/8"
Brand: HTC
Series: HTC100
General Purpose
Diameter Information
Diameter Information: 0.3750 3/8"
Diameter Tolerance: +.000" -.002"
OD Grind: Standard
Shank Information
Shank Diameter: 3/8"
Shank Tolerance: +.0000" -.0005"
Shank Type: Straight
Length Information
Flute Length: 5/8"
Neck Length: ~~~
Overall Length: 2"
Length Category: Stub
Fluting Information
Number of Flutes: 4
Helix Angle: 30°
Flute Index: Constant
Cut: Center Cutting Right Hand
Spiral Right Hand
Coating and End Configuration
Coating: Uncoated
End Type: Single End Square
Corner Radius: ~~~
Corner Chamfer or Taper per Side: ~~~
Materials Families: All (P, K, M, S, H, N)
